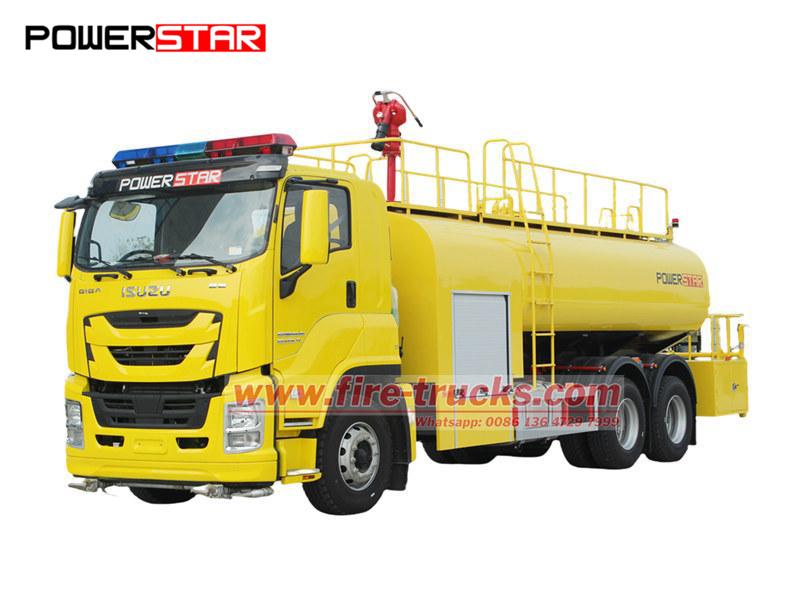

Camión cisterna de agua de servicio pesado ISUZU GIGA de Filipinas

El camión cañón de agua a prueba de explosiones HOWO 6x4 está modificado sobre la base del chasis HOWO HW76 de cabina doble, con una distancia entre ejes de 4600+1350 mm, equipado con motor WP10H400E60 y caja de cambios HW15710. El vehículo está equipado con una caja a prueba de explosiones, un cañón principal en la parte superior y un cañón auxiliar de agua delantero en la parte delantera, lo que permite un control de disturbios integral, de gran caudal y a larga distancia; cabina doble, 6 pasajeros; incluye cisterna de agua: 12000L, cisterna de espuma: 100L, cisterna de tinte: 100L, tanque de agua de pimienta: 100L, equipado con bomba contra incendios CB10/60. La parte delantera del vehículo está equipada con una placa de acero antidisturbios y una potente pala hidráulica de acero para despejar obstáculos; las lámparas y los cristales están protegidos por una malla de acero inoxidable.

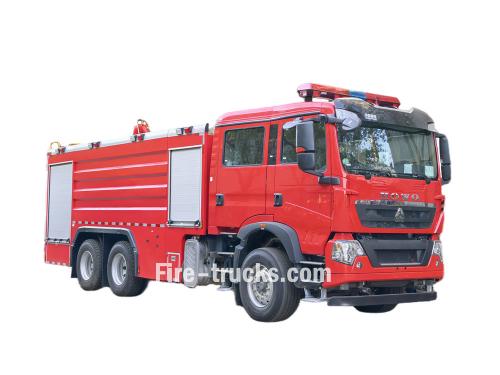

The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.

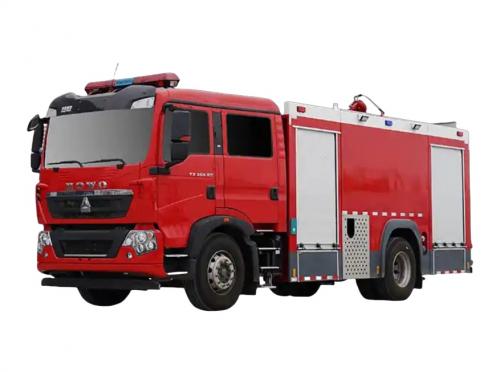

The Sinotruk 6 CBM CAFS fire rescue truck is modified from the Sinotruk C5H chassis, with a 4700mm wheelbase. It is equipped with a Sinotruk MC07H.35-60 engine, a Fast 8-speed gearbox, and features a 5 cubic meter water tank, a 350KG type A foam tank, and a 550KG type B foam tank. The vehicle is equipped with a high-performance fire pump, fire monitor, and CAFS system, and is easy to operate. This vehicle can be used for comprehensive emergency rescue functions such as fire fighting, reconnaissance, demolition, rescue, lighting, and protection.

The CB10/60 low-pressure vehicle fire pump is characterized by excellent performance, high efficiency, compact structure, aesthetic design, simple operation, and convenient maintenance. It is suitable for medium and heavy-duty water tank fire trucks, foam fire trucks, and water tower fire trucks, etc.

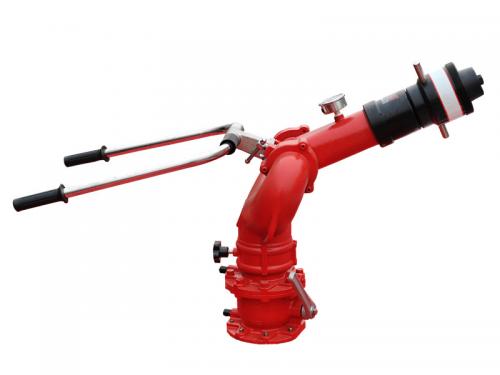

The Fire Truck Foam Cannon PL48 is a manual fire monitor that can spray both foam and water. It has a rated flow rate of 48 L/s, a rated pressure of 0.8 MPa, a water spray range of ≥70 m, and a foam spray range of ≥60 m. The monitor can rotate 360° horizontally and has an elevation angle of -30° to 70°, offering flexible operation.

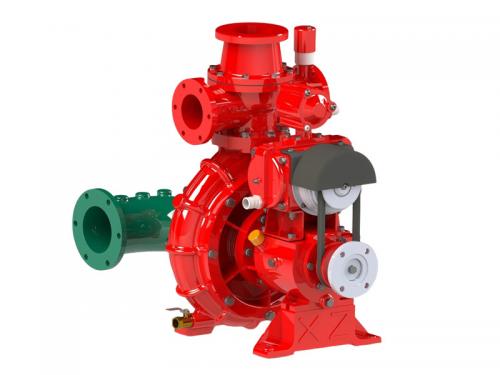

The CB10 30 fire pump adopts a single-stage centrifugal pump structure with a two-piston priming device. The priming device is activated by the pump's rotation and automatically disengages once the required pressure is reached. The product operates stably and is reliable in quality, with various inlet and outlet pipe options available.

The Isuzu GIGA 4.5 CBM foam fire truck uses the Isuzu GIGA 4x2 Class II fire truck chassis, with a 4600mm wheelbase, an Isuzu 6UZ1-TCG50 engine, and a FAST 12-speed gearbox. The front of the superstructure houses the equipment compartment, with a 4 cubic meter carbon steel water tank and a 500L stainless steel foam tank in the middle. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, fire hoses, and a PL8/48 fire monitor mounted on the roof.

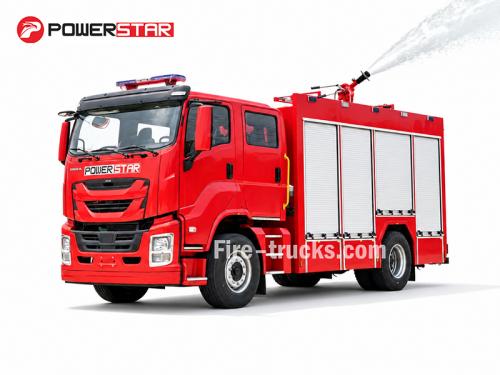

El camión cisterna de agua y espuma ISUZU GIGA VC66 de alta resistencia es un vehículo de extinción de incendios profesional con autobomba, equipado con un motor diésel 6UZ1-TCG61 de 380 CV y emisiones de 9839 cc. Incorpora un tanque cisterna de acero inoxidable de 5000 L, que incluye un tanque de agua de 4000 L y un tanque de espuma de 1000 L. Funciona con una bomba contra incendios CB10/60 y un monitor de incendios PL8/48 en la parte superior, con un alcance de trabajo eficiente de 65 metros para agua y 55 m para espuma. El camión de bomberos con autobomba de espuma POWERSTAR es especialmente adecuado para combatir incendios complejos en plantas petroquímicas, comunidades, puertos y entornos similares, ofreciendo alta movilidad y capacidad operativa sostenida.
